/ 01
Shredding
High-efficiency shredder breaks food waste into small particles for stable, consistent processing.
Exclusive Australian distributor

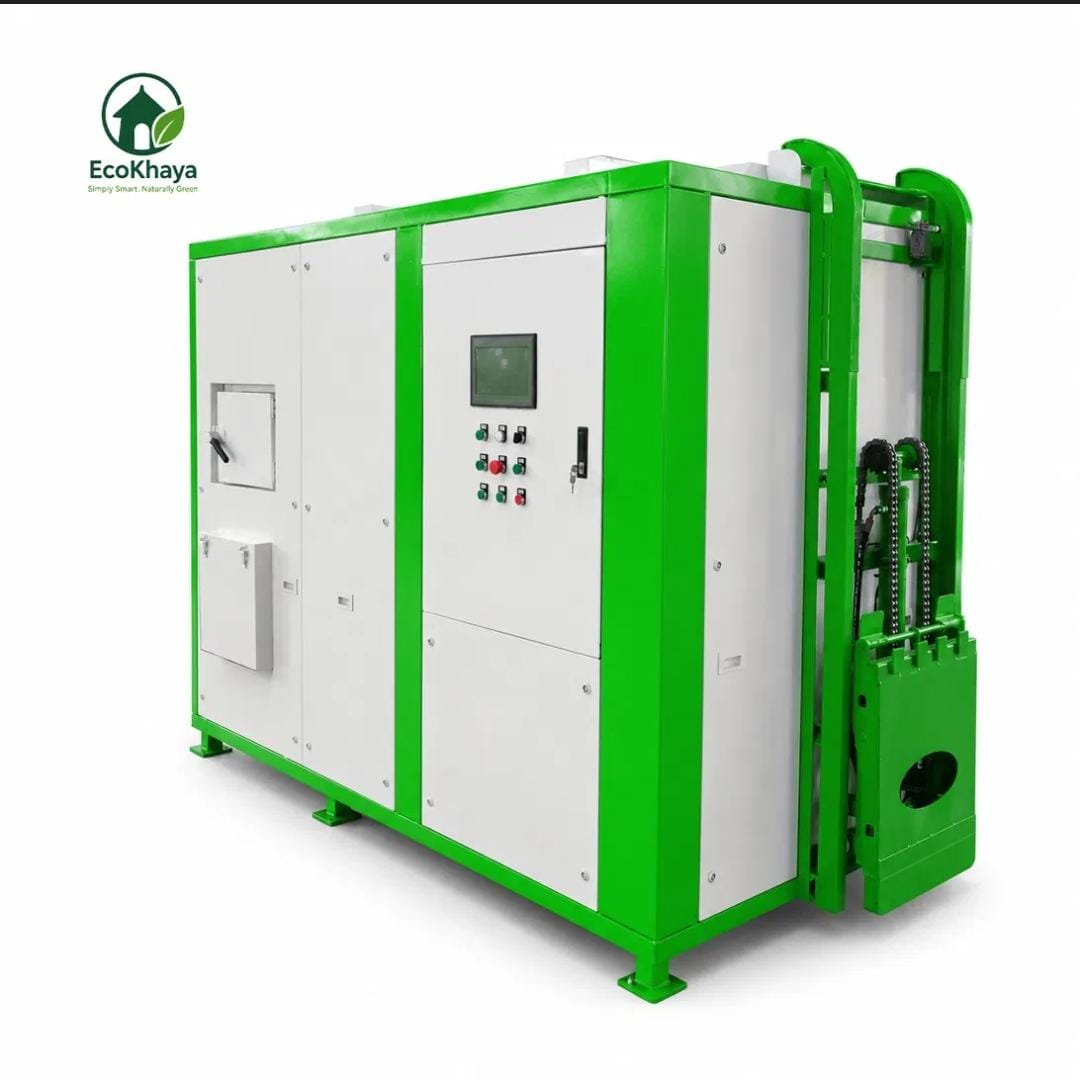

EK-Series™ on-site food waste treatment.
An all-in-one automated system that shreds, dewaters, separates and ferments food waste on site — reducing volume by up to 90% and turning it into a usable pre-compost, without it ever leaving your property in a truck. Six models from 50 to 1,000 kg/day.
Volume reduction
80–90%
Cycle time
20–24 hr
Construction
SUS304
Power supply
400V / 3Φ / 50 Hz
The full line-up
Six models. One integrated system.
| Model | Capacity | Power | Dimensions (L×W×H) | Weight |
|---|---|---|---|---|
| EK-50 Compact | 50 kg/day | 7.5 kW | 1510 × 810 × 1070 mm | 0.45 t |
| EK-100 Essential | 100 kg/day | 13 kW | 2110 × 1180 × 1370 mm | 0.5 t |
| EK-200 Professional | 200 kg/day | 17 kW | 2110 × 1280 × 1470 mm | 0.7 t |
| EK-300 Commercial | 300 kg/day | 20 kW | 2110 × 1380 × 1570 mm | 0.8 t |
| EK-500 Enterprise | 500 kg/day | 24 kW | 3400 × 1600 × 2200 mm | 3.2 t |
| EK-1000 Industrial | 1,000 kg/day | 32 kW | 4200 × 1600 × 2200 mm | 3.6 t |
All EK-Series units run on 400V / 3-Phase / 50 Hz power. Dimensions and weight shown are for the base unit, excluding odour control system where fitted separately.
How it works
One machine. Six stages.
/ 02
Dewatering
Integrated squeeze stage removes excess moisture — cutting weight and volume before fermentation.
/ 03
Oil-water separation
Where grease is present, solids are separated from wastewater and oil to protect drainage.
/ 04
Aerobic fermentation
Controlled temperature, oxygen and microbial activity accelerate decomposition in a sealed chamber.
/ 05
Odour control
Multi-stage deodorisation keeps the unit suitable for occupied commercial environments.
/ 06
Pre-compost output
A stable soil improver exits at the end of a 20–24 hour automatic cycle — ready to use or collect.
Key advantages
Why councils, hotels and hospitals choose EK-Series.
Integrated & automatic
One machine handles the entire cycle. PLC + HMI control means consistent performance without constant supervision.
80–90% volume reduction
Dramatically cuts collection frequency, transport cost and landfill dependency.
Usable pre-compost output
Converts food waste into a soil improver — supporting circular-economy outcomes in place of landfill.
Compact footprint
Suited to decentralised on-site treatment — from a single café to a council transfer station.
SUS304 stainless steel
Commercial-grade construction built for continuous duty, with Australian warranty and local parts.
Nationwide support
Exclusive Australian distributor — installation, staff training, servicing and consumables included.
Typical applications
Where the EK-Series fits.
- Councils & waste transfer
- Hotels & resorts
- Restaurants & catering
- Commercial kitchens
- Universities & schools
- Hospitals & aged care
- Supermarkets
- Shopping centres
- Mining camps
- Airports & public facilities
Talk to the Australian distributor.
Trevor Vomo, Principal Consultant — pilot programs, site assessments and quotes for councils, hospitality, healthcare, education and industry.
